Name: HCT402-KM Replacement Remote - Starter/Stop Buttons, IP67
Brand: AXI Teknoloji
SKU: AXI-HCT402KM-RC
Price: 9500.00 TRY
Availability: InStock

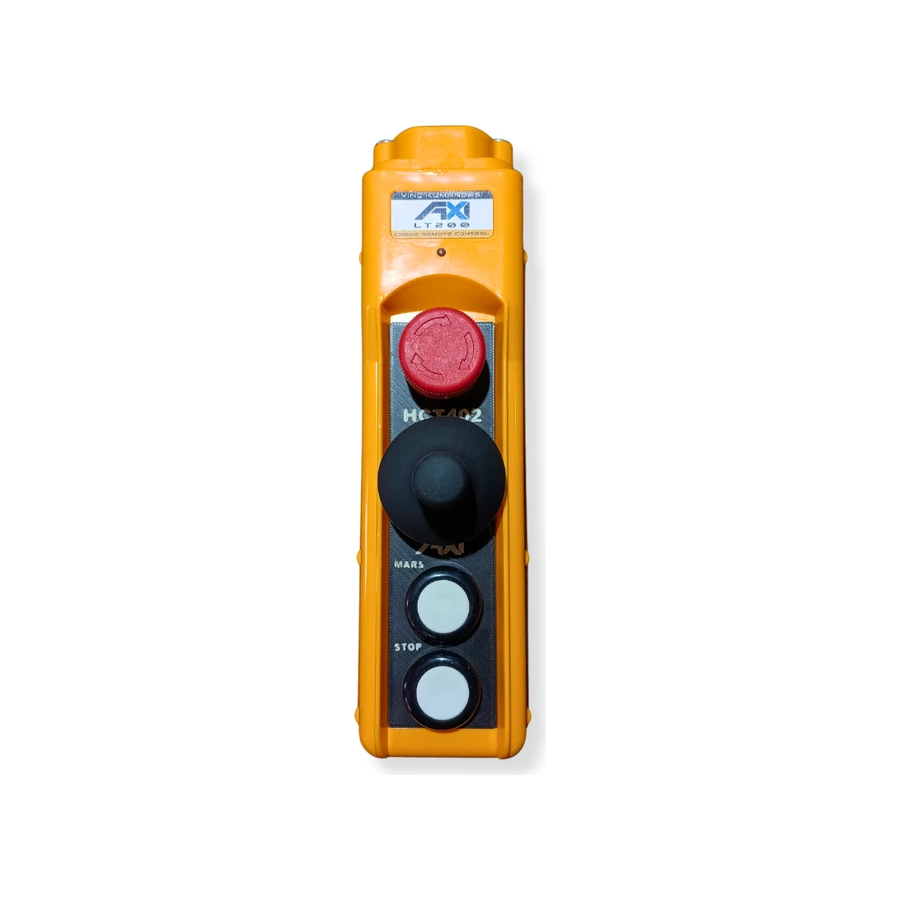

The handheld remote only from the HCT402-KM kit — for lost, damaged or spare units. Emergency Stop + joystick + Starter + Stop, IP67, self-pair.

HCT402-KM Replacement Remote Control is the handheld unit only from AXI Technology's HCT402-KM ignition/starter control kit — no servo motor, SF100R receiver, mounting bracket or relay wiring included. If you already have a working HCT402-KM system installed, this lets you buy just the remote.

The remote is identical hardware to the original 4-button HCT402-KM remote: get it to replace a lost or damaged remote, hand a second operator their own unit, or keep spare stock for fleet vehicles running HCT402-KM. You pair it to your existing system yourself.

Two systems, one remote, no reinstall. If the remote is lost or faulty, the servo motor, SF100R receiver and wiring on your vehicle stay untouched — just pair the new remote to both links and keep working.

At a Glance

Controls

Emergency Stop · 2-axis joystick · Starter · Stop

Wireless Links

2 independent links — XRF (lever) + SF100R link (ignition/starter)

Protection

IP67

Charging

USB, AXI-Link 3-pin connector

Compatibility

HCT402-KM only (HC402 servo + SF100R receiver)

Warranty

24 months full coverage

Four Controls on One Remote

Control	Function
2-axis joystick	Proportional hydraulic lever control (XRF link, HC402 servo)
Emergency Stop	Halts lever motion safely — independent of engine/ignition
Starter	First press turns ignition on, holding a second press cranks the starter (SF100R link)
Stop	Cuts ignition, stops the engine (SF100R link)

Highlight Features

Identical to the original

Same hardware as the original HCT402-KM remote — no recalibration, just pairing.

Self-pair the lever side

No service visit needed for the hydraulic lever link — pair it yourself with the joystick + Emergency Stop method.

IP67 rated

Dust and water resistant housing, built for field use.

USB charging

Charges from any standard USB source (car charger, power bank, adapter) — charging cable included.

Key-style Starter button

First press for ignition, hold for a second press to crank — feels exactly like turning and holding a key.

Dedicated Stop button

Shuts the engine down with one press, fully independent from Emergency Stop.

How to Pair It

The remote's two links are paired separately:

Hydraulic lever (HC402 servo)

Hold the joystick right while releasing Emergency Stop to start pairing; test the lever slowly in both directions.

Ignition/Starter (SF100R receiver)

The new remote is taught to the SF100R receiver via its learn mode. The exact button sequence is in the installation guide — contact support if you'd like step-by-step help.

Test in order

With the vehicle stationary, test ignition on/off first, then hold for starter crank.

Technical Specifications

Product Type	Remote only (no servo motor, SF100R receiver, bracket or wiring)
Controls	Emergency Stop · 2-axis proportional joystick · Starter · Stop
Wireless Links	2 independent links: XRF encrypted (lever) + SF100R link (ignition/starter)
Protection Class	IP67
Operating Temperature	−20 °C / +85 °C
Charging	USB, AXI-Link 3-pin connector
Pairing	Lever: joystick-right + Emergency-Stop-release (user-performed). Ignition/starter: SF100R learn mode
Compatibility	HCT402-KM only (HC402 servo + SF100R receiver) — see compatibility warning
Warranty	24 months full coverage
Made In	100% AXI Technology R&D — Türkiye

When to Choose This

Situation	Benefit
Lost / damaged remote	Servo motor, SF100R receiver and wiring stay in place — only the remote is replaced and paired.
Second operator	When more than one person runs the system, each gets their own remote.
Business continuity	Keep a spare on hand so a failure in the field doesn't stop work.
Fleet use	Order spares individually for businesses running HCT402-KM across multiple vehicles.

What's in the Box

1 × HCT402-KM wireless remote (Emergency Stop + joystick + Starter + Stop)

1 × USB charging cable

Quick pairing instructions

Compatibility warning

This remote is only compatible with HCT402-KM kits (HC402 servo motor + SF100R receiver). The standard HCT402 remote has no Starter/Stop buttons (joystick + Emergency Stop only), and the HCT402-D differential-drive kit uses a wired joystick — both are physically different remotes and are not compatible with this unit. If you're unsure, send a photo of your current remote and we'll confirm the right product.

HCT402-KM Replacement Remote Control — the handheld unit only, for existing HCT402-KM ignition/starter systems. Pair it yourself, without touching the servo motor or SF100R receiver install, when you lose a remote, need a spare, or add a second operator.
