HCT402-KM extends AXI Technology's proven HCT402 hydraulic-lever conversion kit with remote ignition and starter control. The same handheld unit now drives the hydraulic lever proportionally and switches the vehicle's ignition on and off and cranks the starter — no need to go back to the cab.

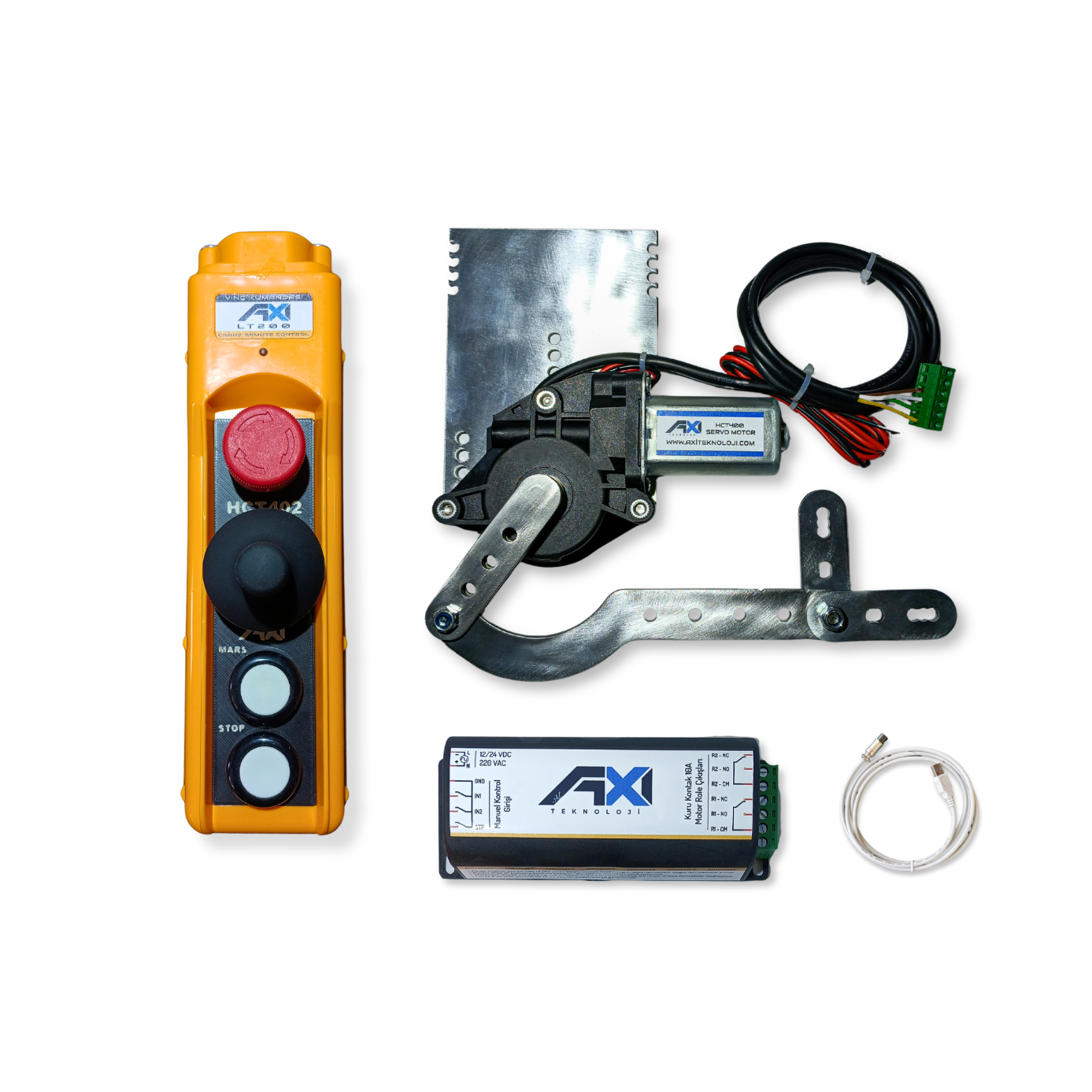

The kit adds two new buttons to HCT402's HC402 servo motor and XRF encrypted wireless joystick, plus a panel-mounted SF100R dual-relay wireless receiver. SF100R reuses the receiver hardware from the field-proven SF100 series, reprogrammed with custom AXI firmware to sequence ignition and starter safely.
HCT402-KM at a Glance
- Force
- ~20 kgf (HC402 servo)
- Controls
- Joystick + 3 buttons
- New
- Ignition/Starter + Stop
- Receiver
- SF100R · 2×10A relay
- Voltage
- 12V & 24V
- Protection
- IP67 + reverse polarity
Four Controls on One Remote
HCT402-KM adds two buttons to the standard HCT402's two controls (Emergency Stop + joystick). The ignition/starter button mimics a real ignition key: the first press turns ignition on, holding it down for a second press cranks the starter — just like turning a key and holding it.
| Action | Ignition relay | Starter relay | Result |
|---|---|---|---|
| Ignition/Starter — 1st press | Engages (latches) | — | Ignition turns on, vehicle electrics power up |
| Ignition/Starter — held for 2nd press | Stays latched | Engages while held | Starter cranks, engine starts |
| Button released (while cranking) | Stays latched | Releases | Starter stops, engine keeps running on its own |
| Stop button | Releases | Releases | Ignition cuts, engine stops |
| Emergency Stop | Cuts hydraulic lever commands | Lever motion stops safely (independent of engine/ignition) | |
| Two-axis joystick | — | Proportional lever control (inherited from HCT402) | |
SF100R — Reprogrammed for Ignition Sequencing
The SF100 family's receiver, reworked for ignition logic
SF100R uses the same receiver hardware as AXI's SF100 series, already running in thousands of crane-remote installations. In the standard SF100 it drives a DC motor's forward/reverse; in HCT402-KM it runs custom AXI firmware that sequences ignition and starter safely — the starter relay only engages while ignition is on and the button is held.
Hydraulic Lever Control — Inherited from HCT402
The lever itself still runs on HCT402's proven HC402 servo motor: ~20 kgf force, 7–40V wide voltage range (12V and 24V direct), reverse-polarity protection, IP67 housing and AXI's XRF encrypted link. All three calibration stages, and Soft/Dynamic control modes, carry over unchanged.
Highlight Features
Installation
-
Mount the servo motorThe HC402 servo is fitted to the lever exactly as in HCT402, then range-calibrated.
-
Mount SF100R in the panelThe receiver is fixed inside the vehicle panel and wired to the 12V/24V battery supply.
-
Relay wiringThe ignition relay taps the existing ignition line, the starter relay taps the existing starter line — both in parallel with the original key.
-
Pairing and testThe remote is paired to both the servo motor and SF100R; the ignition-start-stop sequence is tested with the vehicle stationary.
Before starting the engine remotely, confirm the vehicle is in neutral / park with the handbrake set. Operate the remote from a position where you can see the vehicle and confirm no one is near it.
On some diesel vehicles, cutting ignition alone may not stop the engine — a separate fuel-cut relay may be required. Check with us before installation.
Who It's For
- Palfinger, Hiab, HMF, Fassi, Effer, Atlas, Kennis crane trucks
- Dhollandia, Bär, Anteo lift-gate vehicles
- Home-moving and towing trucks
- Tractor front loader levers
- Mini excavators, forklifts, mobile platforms
- Equipment that shouldn't idle unattended between operations
- Municipal and utility vehicles
- Drilling and mining equipment
- Upgrade path for existing HCT402 owners
Warranty & Support
Frequently Asked Questions
What exactly does HCT402-KM add over standard HCT402?
Hydraulic lever control is unchanged. Two new buttons are added to the remote (Ignition/Starter and Stop), and the kit includes a panel-mounted SF100R dual-relay receiver — so the same remote also switches ignition and cranks the starter.
Do I have to hold the button to crank the starter?
Yes — like turning and holding an ignition key. The first press turns ignition on; holding the second press cranks the starter for as long as it's held. Release it and the starter stops while ignition stays on.
What's the difference between Emergency Stop and the Stop button?
Emergency Stop only halts hydraulic lever motion — it doesn't touch the engine or ignition. The Stop button releases the ignition relay and stops the engine. They work independently.
Is the vehicle's original ignition key removed?
No. SF100R wires in parallel with the existing ignition and starter lines. The original key stays functional at all times, including if the wireless system is powered down.
Does it work on diesel vehicles?
On most vehicles, yes — but on some diesel engines cutting ignition alone won't stop the engine, and a separate fuel-cut relay may be needed. Share your vehicle's make and model before installation so we can confirm compatibility.
Where is SF100R mounted — can it stay outdoors?
The receiver is built for mounting inside a vehicle panel or enclosed housing, not for direct exposure to water and dust. The remote itself and the HC402 servo motor are IP67.
What's the range?
Lever control runs on the same XRF link as HCT402, up to 100 metres. The SF100R receiver has an open-field range of ~100 metres.
I already own HCT402 — can I upgrade to HCT402-KM?
Yes. Your existing HC402 servo motor and lever mounting stay as they are; the remote and SF100R receiver kit can be supplied separately and added to your system. Send an upgrade request and we'll quote per vehicle.
Why is there no price listed?
Wiring the ignition/starter relays into a vehicle's harness varies by model, so the kit is quoted individually. Send your vehicle's make, model and a photo around the ignition switch, and we reply with price and install time the same day.
Product Video
HCT402-KM — AXI Technology's extended HCT402 kit, adding remote ignition and starter control. Run the lever and start or stop the engine from one remote.
